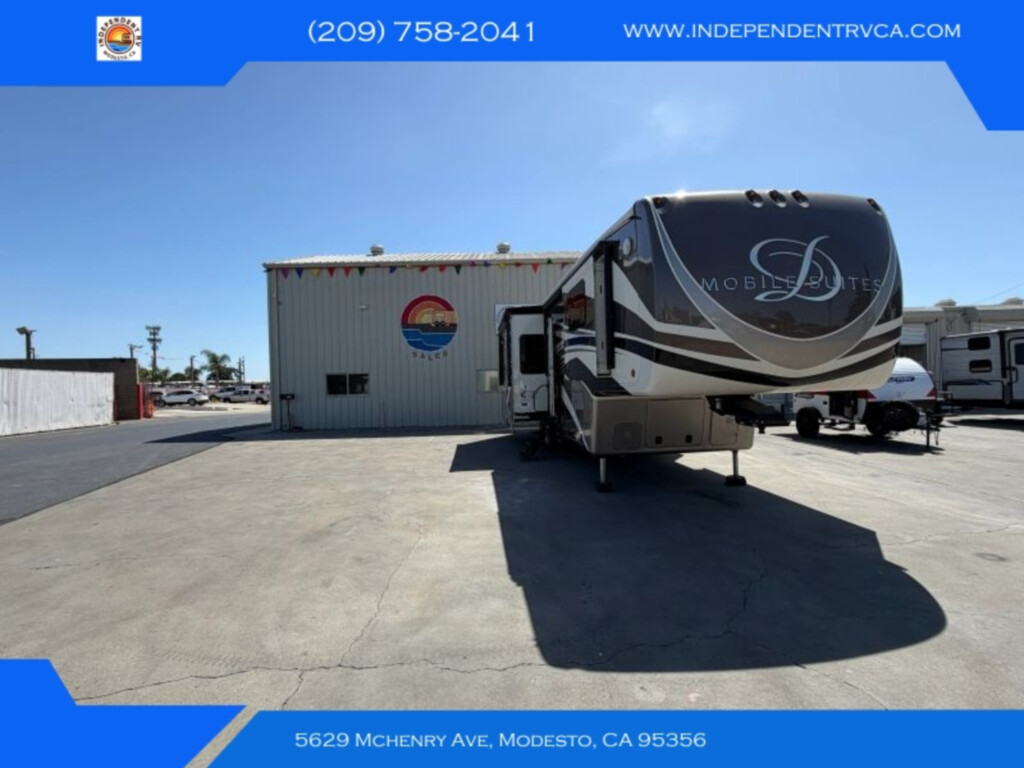

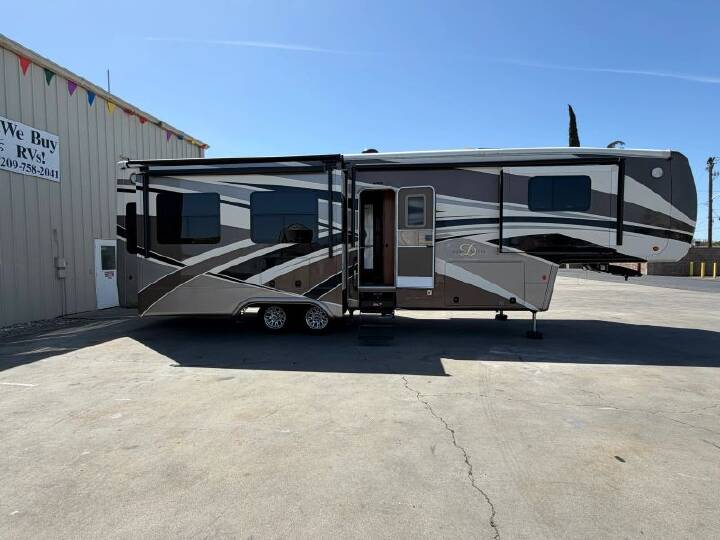

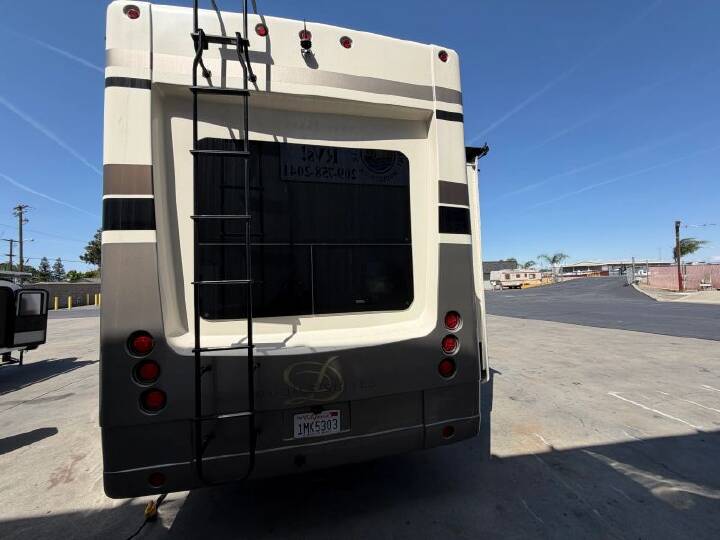

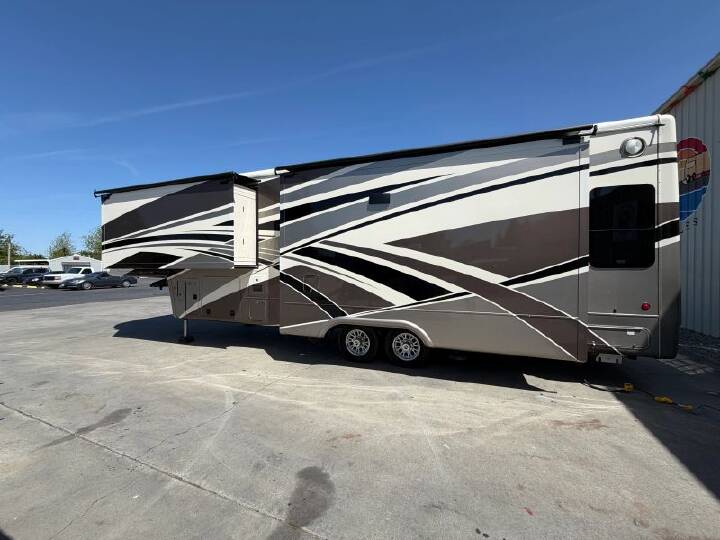

2016 DRV Mobile Suites Fifth Wheel, The 2016 DRV Mobile Suites 36RSSB3 is a luxury 37-foot 2-inch (or 38'-7' depending on source) fifth wheel with three slide-outs, designed for full-time living with a GVWR of 19,000-20,000 lbs and a dry weight around 15,800-16,600 lbs. It features a rear living layout with 100-gal fresh water, 75-gal gray water, and 50-gal black water tanks.
STOCK # 987J
Key 2016 Mobile Suites 36RSSB3 Specifications:
Length: 37' 2' - 38' 7'
GVWR: 19,000 - 20,000 lbs
Dry Weight: 15,800 - 16,600 lbs
Hitch Weight: ~3,300 lbs
Slides: 3 (Opposing in living area)
Width: 101 inches (8' 5')
Fresh/Gray/Black Tanks: 100 / 75 / 50 Gal
DRV Suites +3
Construction & Features:
Structure: 15-inch triple-stacked box tube chassis, 3.25-inch thick walls, and R29 insulated floor.
Running Gear: 17.5-inch H-rated tires with Kodiak automotive disc brakes.
Appliances: 40,000 BTU furnace, 2 x 15,000 BTU AC units (standard), and 12-gallon water heater.
Interior: Residential 18 cu ft refrigerator, convection oven, 4-burner cooktop, and fireplace.
Bedroom: King-size bed, cedar-lined closet, and washer/dryer prep.
