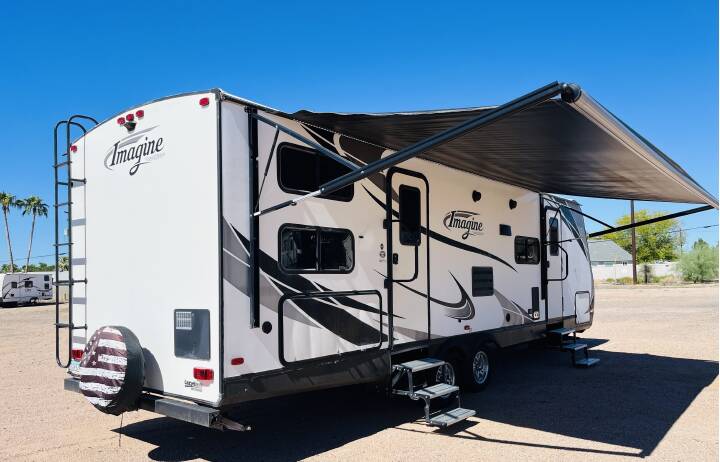

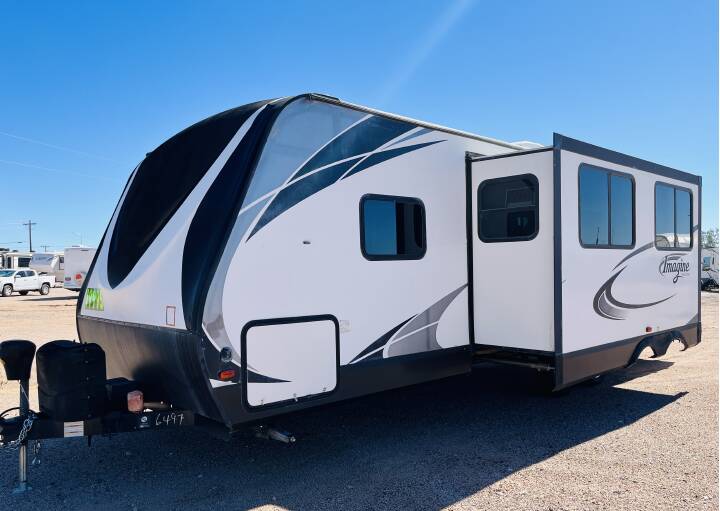

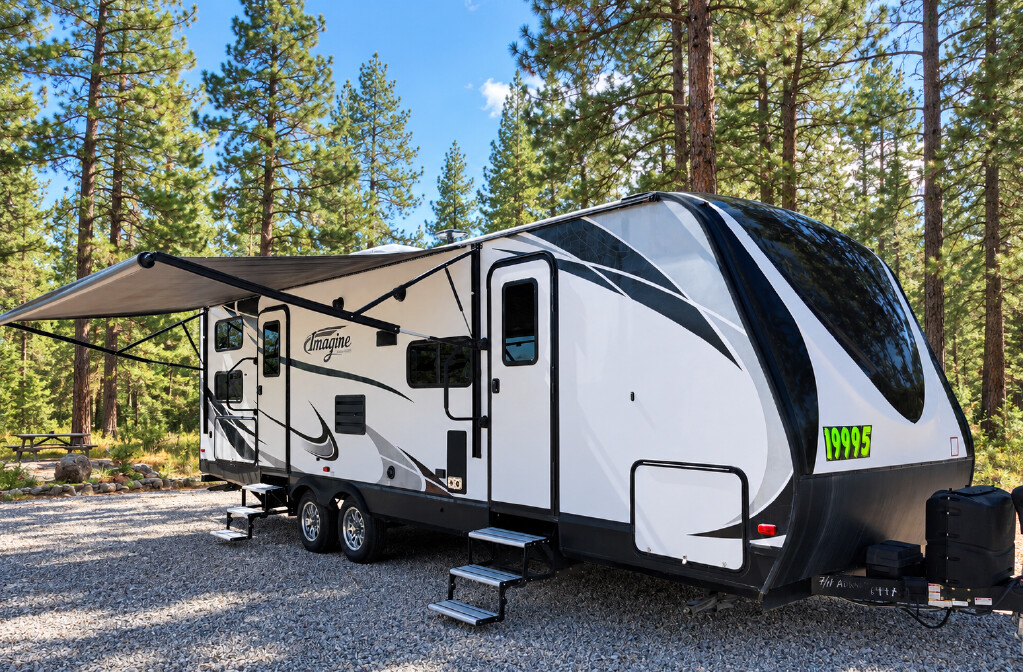

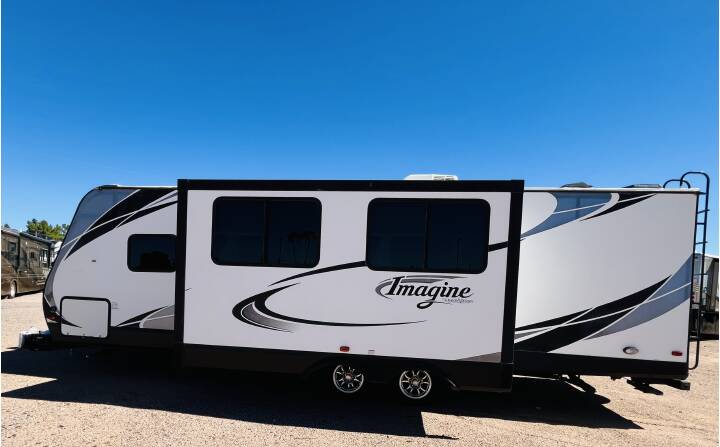

2018 GRAND DESIGN IMAGINE 2800BH

Mesa, AZ • Dealer • Showroom

35

Rv TypeTravel Trailer

Length32 ft

Fuel Type-

Mileage-

RV Details

ConditionUsed

GVWR7495 lbs

Sleeps10

FloorplanIMAGINE

A/C Units1

Slide Outs1

Description

Year: 2018
Manufacturer: Grand Design RV
Model: Imagine 2800BH
RV Type: Bunkhouse Travel Trailer
Hitch Type: Bumper Pull
Overall Length: 32'
Overall Height: 10' 11"
Interior Ceiling Height: 81"
Dry Weight (UVW): Approximately 5,885 lbs.
GVWR: 7,495 lbs.
Cargo Carrying Capacity: Approximately 1,610 lbs.
Hitch Weight: Approximately 575 lbs.
Axles: Tandem
Slide-Outs: 1 power slide
Entry Doors: 2
Sleeping Capacity: Up to 10, depending on furniture configuration
Bedroom: Private front bedroom with 60" x 80" queen bed
Bunks: Rear double-size bunk beds
Dinette: Convertible U-shaped dinette
Outdoor Kitchen: Exterior cooking area
Fresh Water Capacity: 52 gallons
Gray Water Capacity: 71 gallons
Black Water Capacity: 39 gallons
LP Capacity: Two 20-lb. tanks; 40 lbs. total.
Furnace: 35,000 BTU
Air Conditioning: 15,000-BTU ducted roof A/C
Electrical Service: 30-amp standard
Awning: 21' power patio awning with LED lighting
Tongue Jack: Power
Stabilizers: Manual front and rear
Water Heater: Gas/electric quick-recovery system
Refrigerator: Double-door propane/electric RV refrigerator
Kitchen: Three-burner range, oven, microwave and stainless-steel sink
Construction: Laminated aluminum-framed walls with fiberglass exterior
Holding Tanks: Heated, enclosed underbelly and enclosed dump valves
Black Tank: Flush system
Exterior Storage: Pass-through compartment
Solar: Solar power inlet
Backup Camera: Preparation
Entertainment: LED TV, Bluetooth stereo and exterior speakers
Additional Features: Roof ladder, outdoor spray port, LP quick-connect and underbed storage.
