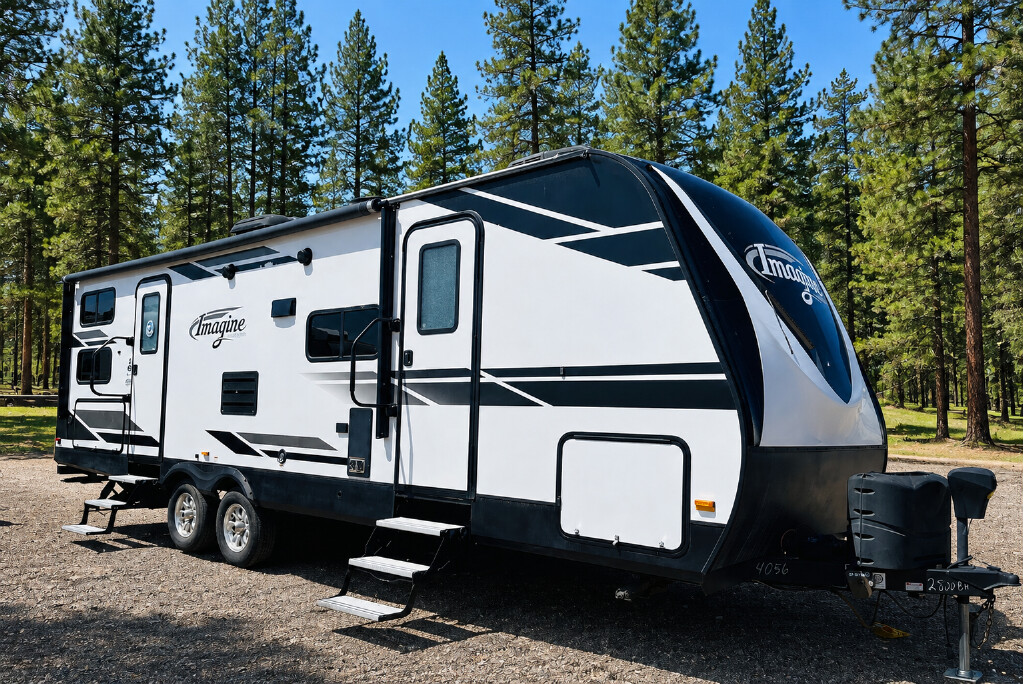

2019 GRAND DESIGN IMAGINE 2800BH
18
Rv TypeTravel Trailer
Length32 ft
Fuel Type-
Mileage-
RV DetailsStock #: 614056
ConditionUsed
GVWR
Sleeps10
FloorplanIMAGINE
A/C Units2
Slide Outs2
Description
Year: 2019
Manufacturer: Grand Design RV
Model: Imagine 2800BH
RV Type: Travel Trailer / Bunkhouse Travel Trailer

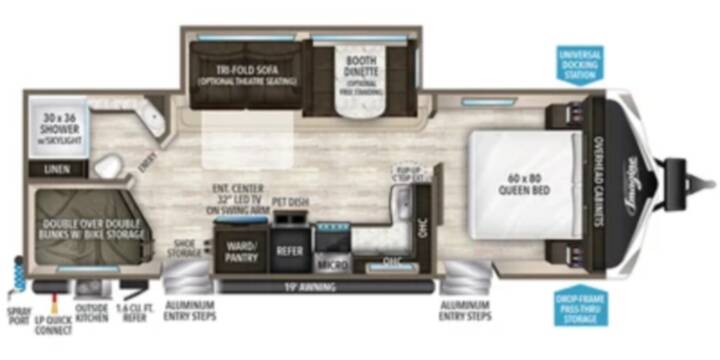

Floorplan: 2800BH Bunkhouse with Front Bedroom, Outdoor Kitchen & Dual Entry
Overall Length: 32' 0"
Overall Height: 11' 1"
Overall Width: 8' 0"
Dry Weight: 6,195 lbs.
Hitch Weight: 605 lbs.
Sleeping Capacity: Up to 10
Slide-Outs: 1
Axles: 2
Hitch Type: Bumper Pull
Fresh Water Capacity: 52 gallons
Gray Water Capacity: 76 gallons
Black Water Capacity: 39 gallons
Air Conditioning: 15,000 BTU ducted main A/C
Furnace: 35,000 BTU high-capacity furnace
Water Heater: 17.8 gal./hr. quick-recovery water heater
LP Capacity: Two 20-lb. LP bottles
Electrical Service: 30-amp
Awning: Electric awning with LED lighting
Leveling: Power tongue jack
Exterior Storage: Drop-frame pass-through storage
Exterior Construction: Gel-coated fiberglass exterior with laminated aluminum-framed construction
Roof: One-piece roof membrane with 12-year warranty
Walls: Laminated aluminum-framed side and rear walls with R-7 insulation
Main Floor: Laminated aluminum-framed main floor with R-30 insulation
Roof Insulation: 5" radius wood-framed roof with R-40 insulation
Underbelly: Heated and enclosed underbelly with suspended tanks
Dump Valves: Heated and enclosed dump valves
Holding Tanks: Enclosed and heated
Fresh Water System: High-capacity water pump with oversized fresh-water drain
Black Tank: Black tank flush system
Solar: Solar power inlet
Battery: Battery kill switch located in pass-through storage
Exterior Windows: 80% tint radius safety-glass windows
Manufacturer: Grand Design RV
Model: Imagine 2800BH
RV Type: Travel Trailer / Bunkhouse Travel Trailer
Floorplan: 2800BH Bunkhouse with Front Bedroom, Outdoor Kitchen & Dual Entry
Overall Length: 32' 0"
Overall Height: 11' 1"
Overall Width: 8' 0"
Dry Weight: 6,195 lbs.
Hitch Weight: 605 lbs.
Sleeping Capacity: Up to 10
Slide-Outs: 1
Axles: 2
Hitch Type: Bumper Pull
Fresh Water Capacity: 52 gallons
Gray Water Capacity: 76 gallons
Black Water Capacity: 39 gallons
Air Conditioning: 15,000 BTU ducted main A/C
Furnace: 35,000 BTU high-capacity furnace
Water Heater: 17.8 gal./hr. quick-recovery water heater
LP Capacity: Two 20-lb. LP bottles
Electrical Service: 30-amp
Awning: Electric awning with LED lighting
Leveling: Power tongue jack
Exterior Storage: Drop-frame pass-through storage
Exterior Construction: Gel-coated fiberglass exterior with laminated aluminum-framed construction
Roof: One-piece roof membrane with 12-year warranty
Walls: Laminated aluminum-framed side and rear walls with R-7 insulation
Main Floor: Laminated aluminum-framed main floor with R-30 insulation
Roof Insulation: 5" radius wood-framed roof with R-40 insulation
Underbelly: Heated and enclosed underbelly with suspended tanks
Dump Valves: Heated and enclosed dump valves
Holding Tanks: Enclosed and heated
Fresh Water System: High-capacity water pump with oversized fresh-water drain
Black Tank: Black tank flush system
Solar: Solar power inlet
Battery: Battery kill switch located in pass-through storage
Exterior Windows: 80% tint radius safety-glass windows
