2022 INTERNATIONAL RV OTHER
32
Rv TypeClass C
Length-
Fuel TypeDIESEL
Mileage22471 mi
RV DetailsStock #: 172610-TR
ConditionUsed
GVWR
Sleeps4
FloorplanOTHER
A/C Units1
Water Cap.110 gal
Description
THIS IS BIG BLUE!!

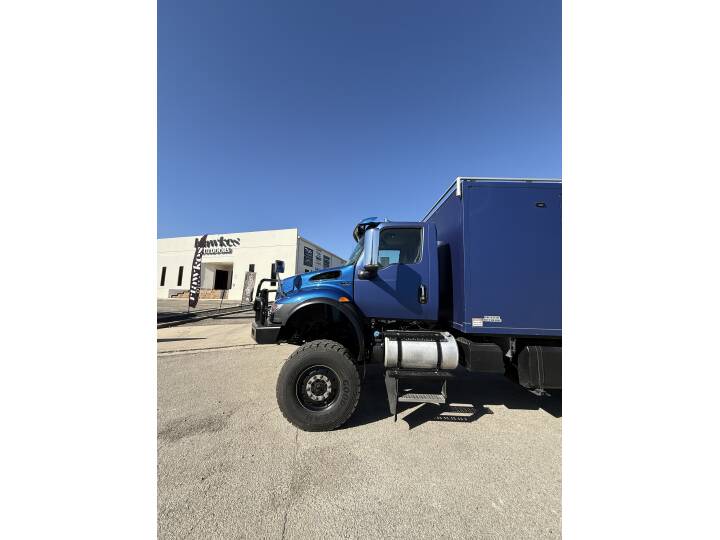

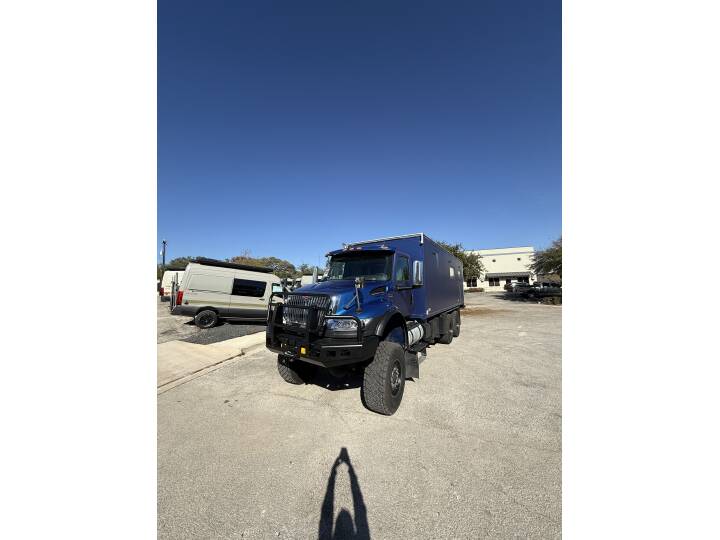

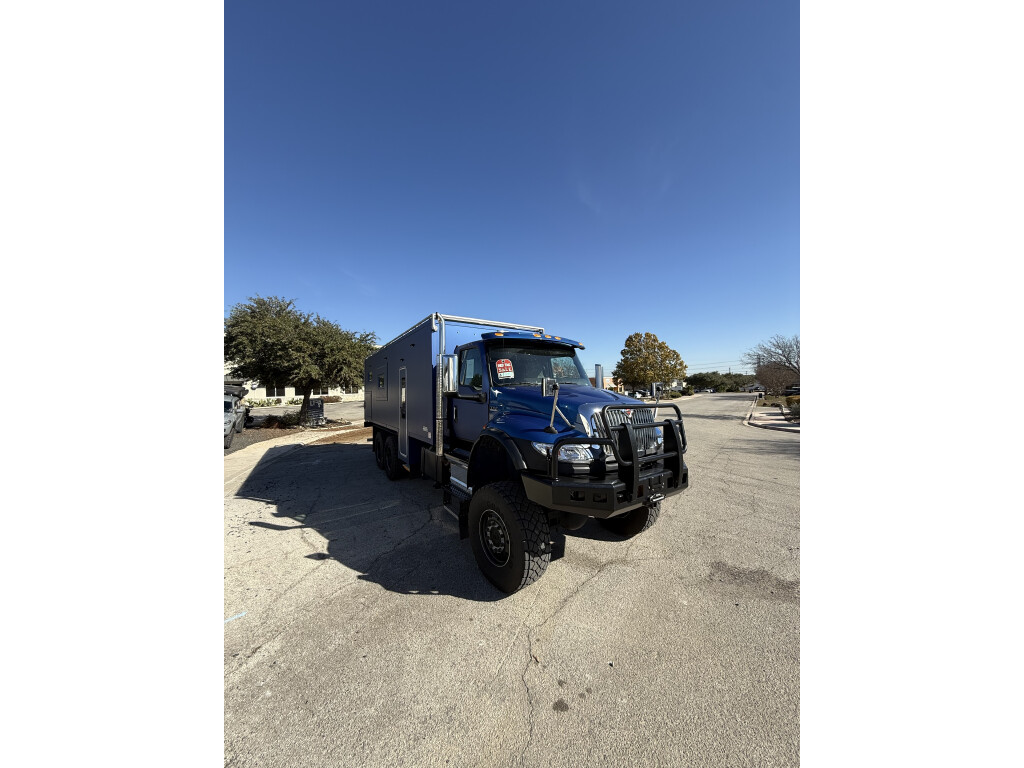

Built on an International HV607 chassis with the 6×6 conversion completed by Tulsa Truck Manufacturing.
CHASSIS & DRIVETRAIN
HABITAT

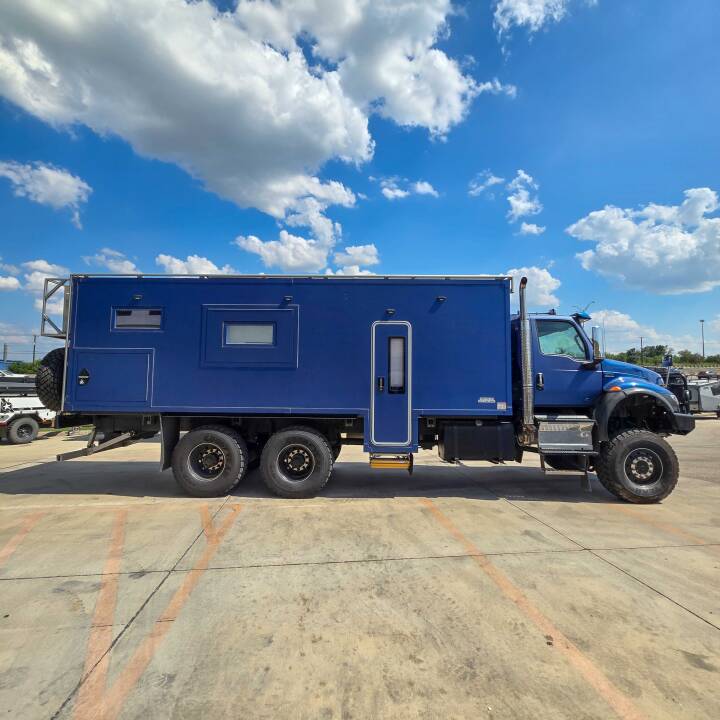

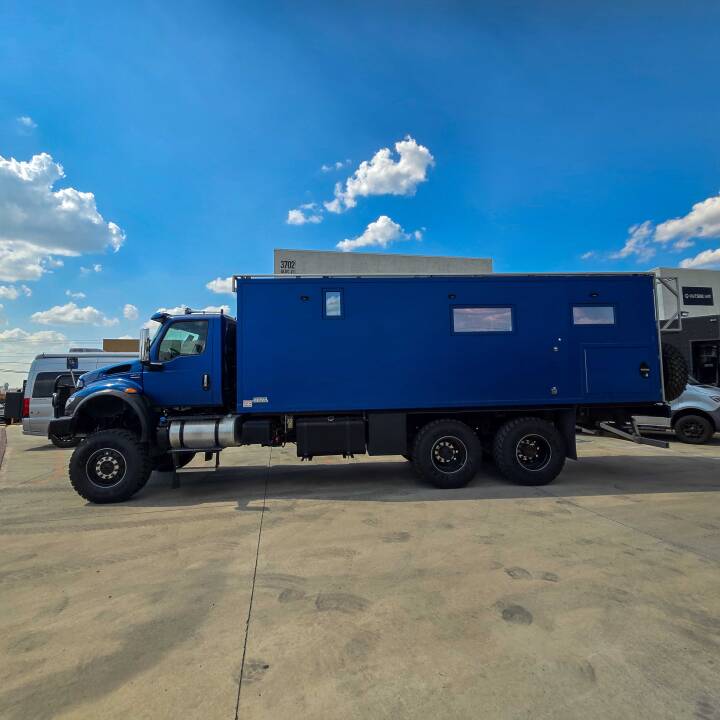

Four-season expedition rig with a 23-foot, extremely well-insulated camper body built by Global Expedition Vehicles. The camper body is constructed from 60mm-thick composite panels with closed-cell foam insulation sandwiched between fiberglass-reinforced panels.
ELECTRICAL & SOLAR
FUEL & WATER
EXTERIOR & EQUIPMENT
Check out our website for more details or call 210-251-2882
Built on an International HV607 chassis with the 6×6 conversion completed by Tulsa Truck Manufacturing.
CHASSIS & DRIVETRAIN
- Cummins L9 engine: 350 HP and 1,050 lb.-ft. of torque
- Allison 3000 RSD Rough Service Duty 6-speed automatic transmission
- 6×6 chassis with locking differentials on all three axles
- 40,000-lb. rear and 16,000-lb. front
- High/low transfer case
- Alcoa aluminum rims, including two spares
- 425/65R22.5 Goodyear MSD tires: 44.6" diameter and 20-ply
- Two brand-new spare tires mounted on the back of the truck
HABITAT
Four-season expedition rig with a 23-foot, extremely well-insulated camper body built by Global Expedition Vehicles. The camper body is constructed from 60mm-thick composite panels with closed-cell foam insulation sandwiched between fiberglass-reinforced panels.
- Pass-through between cab and habitat
- Extra-large kitchen galley
- Custom bamboo countertop
- Induction cooktop
- Large drawers
- Set up for a dry bath with a 30" × 30" shower stall
- King-size bed area
ELECTRICAL & SOLAR
- Eight Battle Born GameChanger batteries
- 24-volt, 1,080-amp-hour battery bank
- Two Victron Energy Quattro 24V/5000VA/120A units
- 12-volt, 24-volt, 120-volt and 240-volt wiring
- 2,000-watt solar panel array
- Two Victron MPPT 150/70 SmartSolar charge controllers
- Four Victron Orion-Tr Smart 24/12-30 DC-to-DC chargers to charge the house batteries while driving
- One Victron Orion-Tr Smart 12/24-15 DC-to-DC charger to charge the truck batteries from the house batteries
- Nominal capacity of 26,000 watt-hours at 24 volts and 28,000 watt-hours at 26 volts
FUEL & WATER
- Two additional 100-gallon fuel tanks for a total capacity of 270 gallons
- Fuel-transfer pump with water separator and filter
- Additional water separator and fuel filter on the truck
- Approximately 60-gallon gray-water tank with electric drain valve
- Remco 12-volt water pump
EXTERIOR & EQUIPMENT

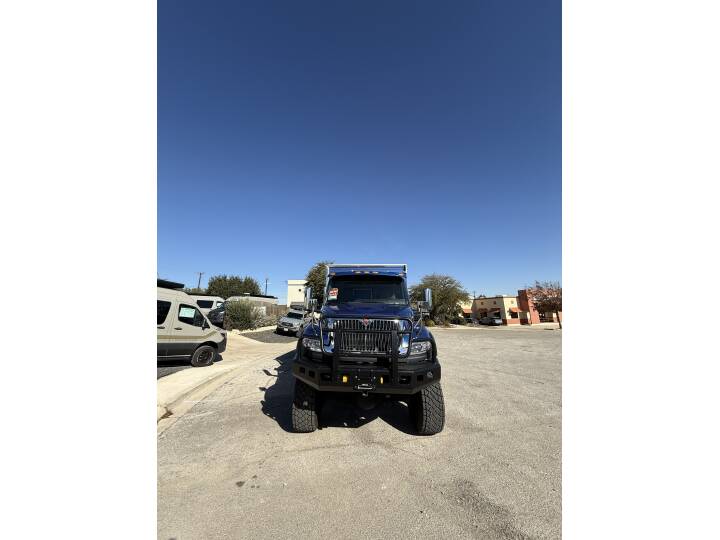

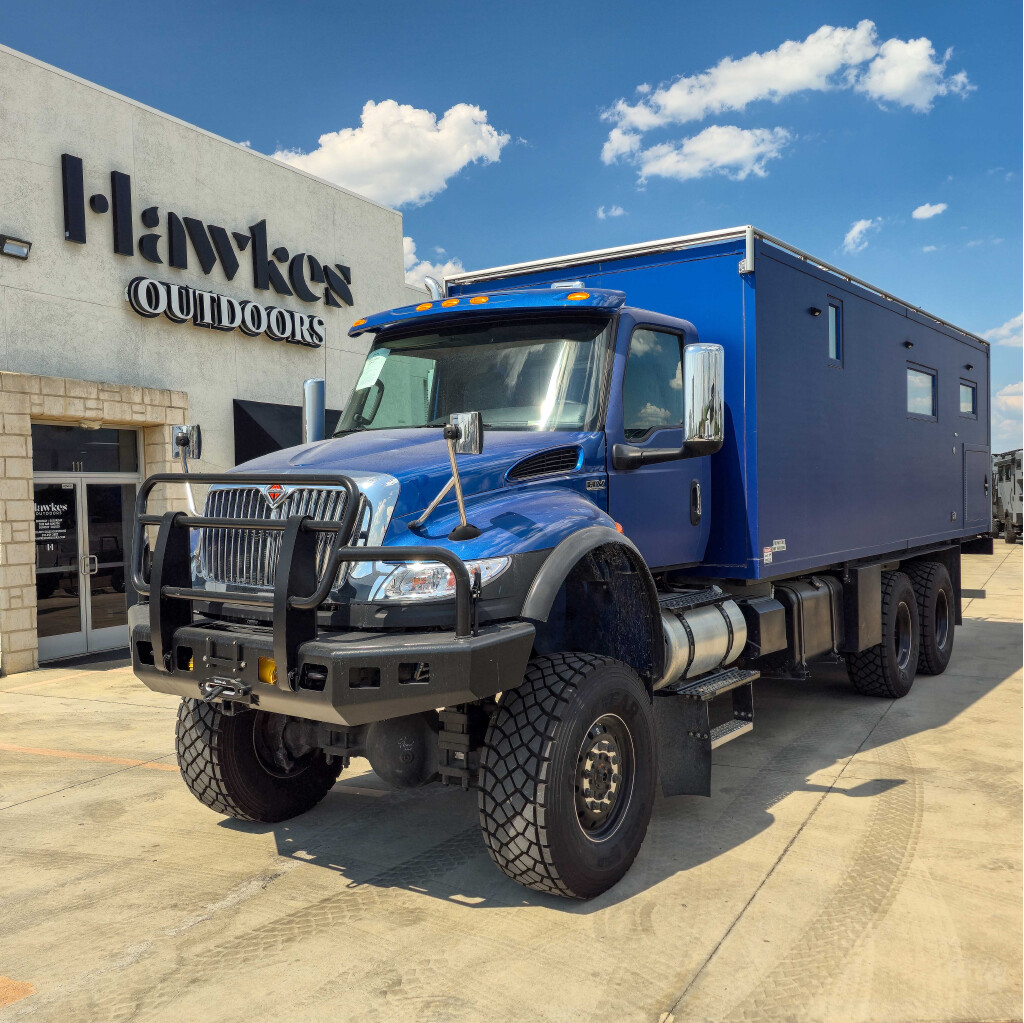

- Buckstop front bumper
- Front and rear 25,000-lb. Sherpa winches mounted but not wired
- Custom Power Aluminum three-stage entry steps

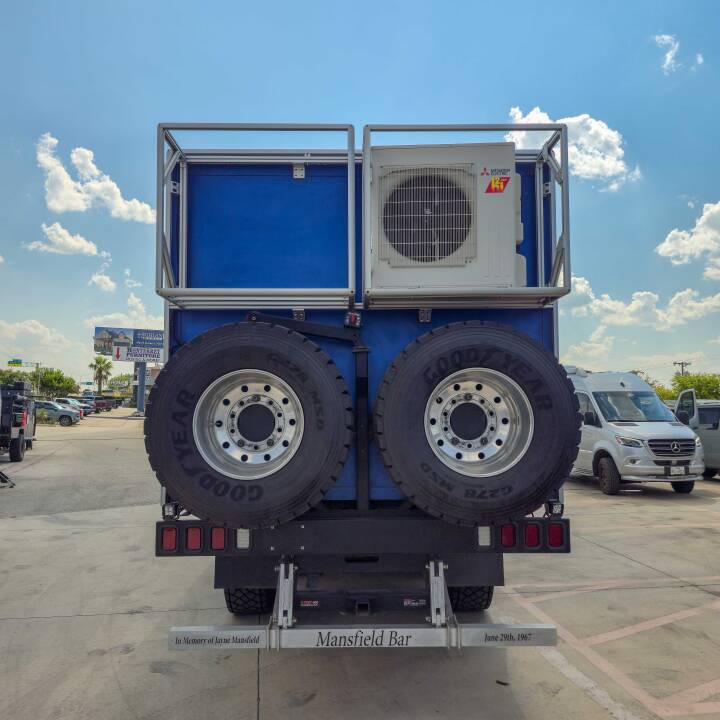

- Custom rear steel bumper with custom aluminum Mansfield bar
- Mansfield bar adjusts to the up position for rear clearance
- 80/20 mini-split mount on the rear of the box
- 80/20 mount for a future storage box
- CURT Commercial Duty Class 5 hitch with 2½" receiver
- Front and rear Sherpa 25,000-lb. winches need to be wired
