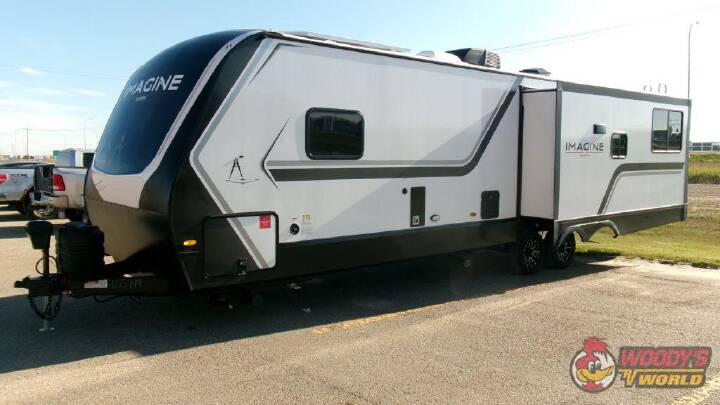

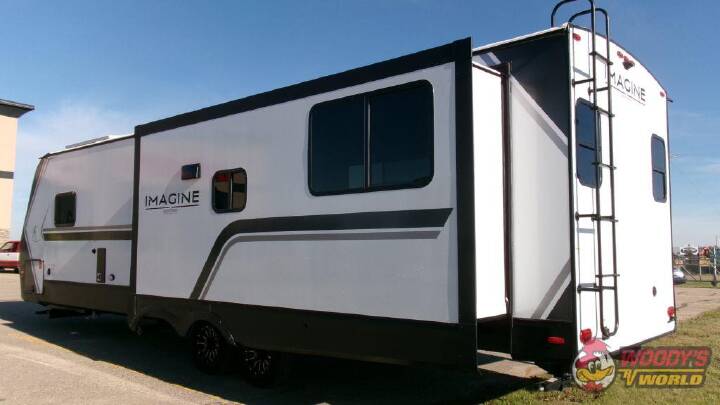

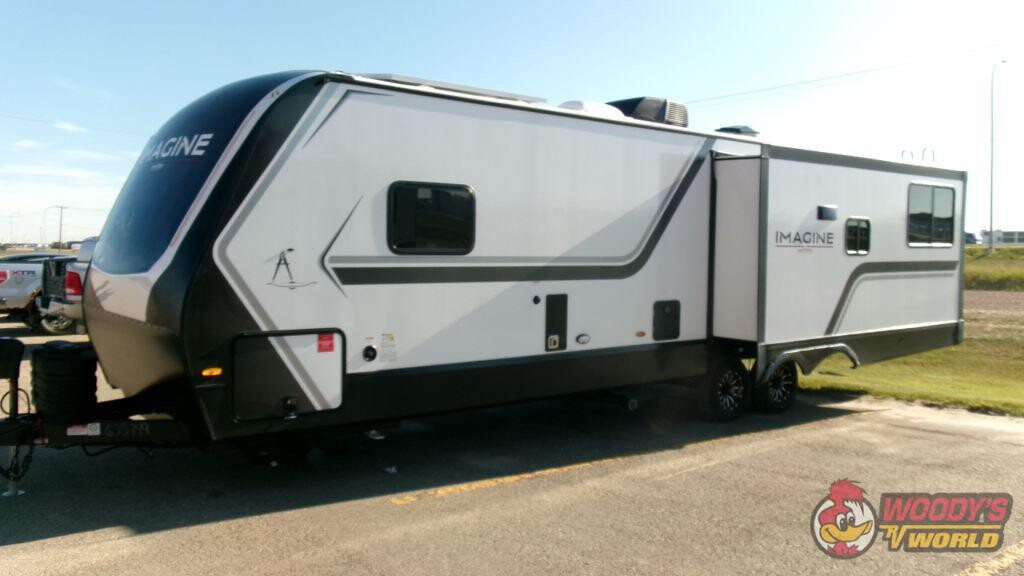

2026 GRAND DESIGN IMAGINE 3100RD
23
Rv TypeTravel Trailer
Length35 ft
Fuel Type-
Mileage-
Description
2026 GRAND DESIGN IMAGINE 3100RD,
Specifications and Features:
Specifications and Features:
- Exterior Length: 35' 11"
- Exterior Height: 11' 3"
- Exterior Width: 8'
- Interior Height: 6' 9"
- Dry Weight (UVW): 8,030 lbs
- Gross Vehicle Weight Rating (GVWR): 10,195 lbs
- Hitch Weight: 879 lbs
- Fresh Water Capacity: 45 gallons
- Gray Water Capacity: 90 gallons
- Black Water Capacity: 45 gallons
- Sleeping Capacity: 6
- Slideouts: 2
- Furnace: 30,000 BTU
- Air Conditioner: 15,000 BTU
- Refrigerator: 10 cu. ft. 12V
- Cooktop Burners: 3
- Shower Size: 30" x 36"
- Water Heater: On Demand Tankless
- Awning: 19' Power Adjustable with LED Lighting
- Axle Count: 2
- Tire Size: ST225/75R15LRE
- LP Tank Capacity: 20 lbs (x2)
- Electrical Service: 50 amp
- Construction Type: Aluminum Cage
- Floor R-Value: R-30
- Wall R-Value: R-7
- Roof R-Value: R-40
- Slide Room R-Value: R-7
- Heated and Enclosed Underbelly with Suspended Tanks
- Double Insulated Roof and Front Cap
- Heated and Enclosed Dump Valves
- Designated Heat Duct to Subfloor
- High Density Roof Insulation with Attic Vent
- Moisture Barrier Floor Enclosure
- Tire Linc TPMS Prep
- MorRyde CRE-3000
- Wet Bolts & Brass Bushings
- Accessory Hitch Receiver

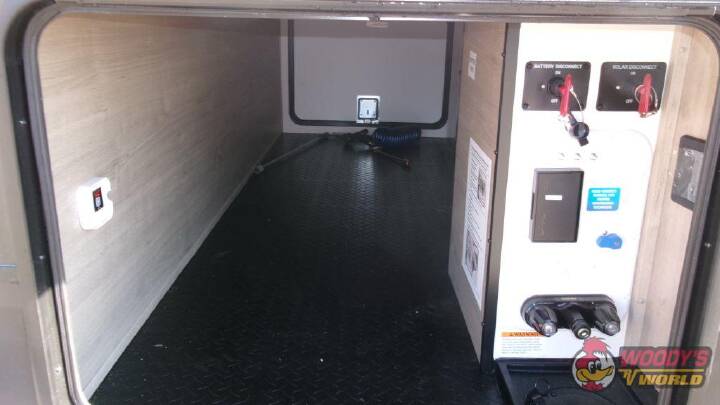

- Drop Frame Pass-Thru Storage
- Solid Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Face Frames
- Large Panoramic Windows
- Ball Bearing Full Extension Drawer Glides
- Upgraded Residential Furniture
- Radius Ceiling with 81" Tall Headroom
- Soft-Close Cabinet Doors
- Magnetic Cabinet Door Catches
- Dimming Ceiling LED Lights
- Sink Cover
- Stainless Steel Sink
- Solid Surface Countertops
- Built-In Soap Dispenser
- Paper Towel Holder
- Dedicated Trashcan Cabinet
- Battery Disconnect Switch (Pass Thru)
- Solar Kill Switch
- 200W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 30 AMP Charge Controller
- LED Interior Lighting
- Detachable Power Cord
- Compass Connect
- 50 AMP Service
- Ducted Main AC
- Optional 2nd Ducted A/C
- High Capacity Fu
RV details
Type
Travel Trailer
Condition
New
Length
35 ft
Odometer
0 mi
Slide-outs
2
Sleeping capacity
6
Exterior color
Aluminum
Floor plan
IMAGINE
Dealer stock ID
50671
