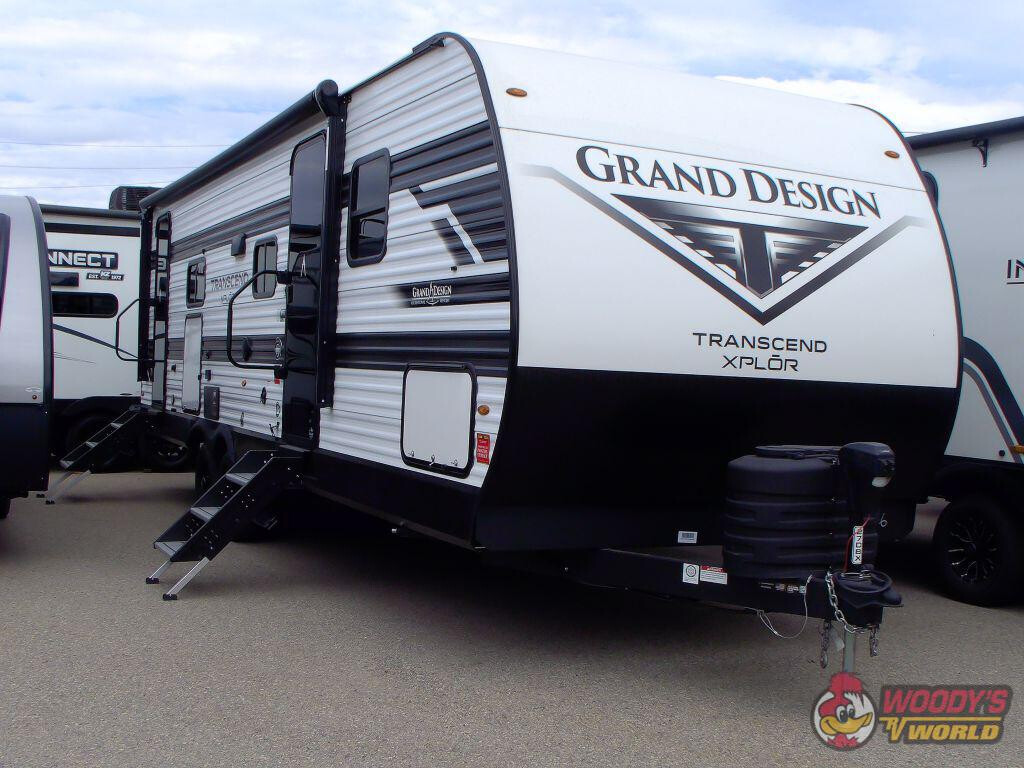

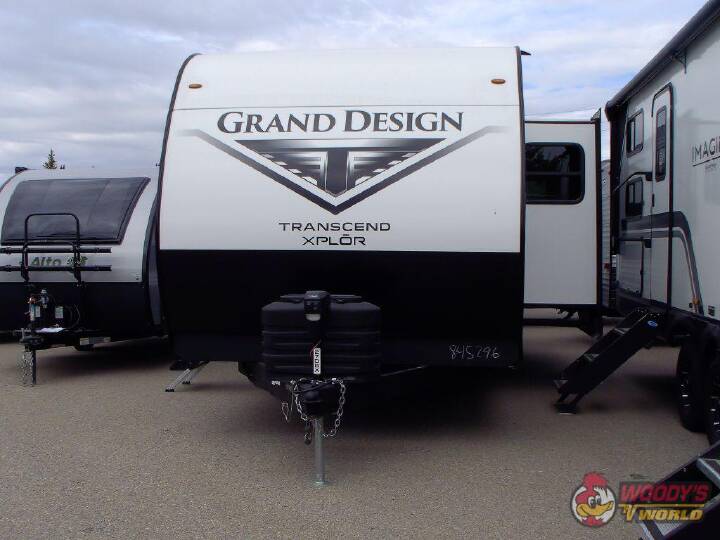

2026 GRAND DESIGN TRANSCEND XPLOR 27DBX
1
Rv TypeTravel Trailer
Length32 ft
Fuel Type-
Mileage-
Description
2026 GRAND DESIGN TRANSCEND 27DBX,
Specifications and Features:
Specifications and Features:
- Exterior Length: 31' 9"
- Exterior Width: 8'
- Exterior Height: 11'
- Interior Height: 6' 6"
- Dry Weight (UVW): 6,820 lbs
- Gross Vehicle Weight Rating (GVWR): 9,724 lbs
- Hitch Weight: 714 lbs
- Fresh Water Capacity: 56 gallons
- Gray Water Capacity: 78 gallons
- Black Water Capacity: 39 gallons
- Sleeping Capacity: 6
- Slideouts: 1
- Refrigerator: 10 cu. ft. 12V
- Furnace: 35,000 BTU
- Air Conditioner: 13,500 BTU
- Water Heater: Tankless
- Axles: 2
- Wheel Size: 15 in.
- Tire Size: ST205/75R15LRD
- Construction Type: Traditional
- Floor R-Value: R-11
- Wall R-Value: R-9
- Roof R-Value: R-40
- Slide Room R-Value: R-9
- Standard Bed: 60" x 80" Queen Bed
- Standard Bunk: (2) 46" x 76"
RV details
Type
Travel Trailer
Condition
New
Length
32 ft
Odometer
0 mi
Slide-outs
1
Sleeping capacity
6
Exterior color
Aluminum
Interior color
CASHMERE
Floor plan
TRANSCEND XPLOR
Dealer stock ID
51743
