2026 IMPERIAL OUTDOORS OUTBACK SERIES OB-120
31
Rv TypeTeardrop Trailer
Length16 ft
Fuel Type-
Mileage-
Available to Order
Description
Now available at Outback RV of Texas! The OB120 is the newest model in the Outback Series from Imperial Outdoors, built for adventure seekers who demand four-season performance, modern off-grid features, and total independence. Limited availability.
Core Specs:
Overall Length: 16 ft 9 in
Width (incl. fenders): 79.5 in
Height: 7 ft
Interior Height: 47.5 in
Ground Clearance: 16.5 in to skid plate, 21 in to frame
Tire Size: 245/75 R16
Dry Weight: 2,543 lbs
GVWR: 4,200 lbs
Tongue Weight: 280 lbs
Cargo Capacity: 1,657 lbs
Power & Electrical:
(2) 200W Solar Panels (400W total)
204Ah Lithium Battery Bank (102Ah x2)
800W Inverter
Victron Power System
12V Components for full off-grid functionality
Optional Additional Battery Storage
Heating & Cooling:
12V Air Conditioner – We ran it all day with the doors open – batteries stayed at 100%
Truma Combi Furnace/Water Heater (14,300 BTU Heat Output)
Rated for -40°F Performance
Insulated Composite Walls (Same as X195/X145)
Heated Tanks & Battery Heaters
Interior & Living:
Sleeps 2+
Dual-Zone 75L Refrigerator/Freezer (2.65 cu ft)

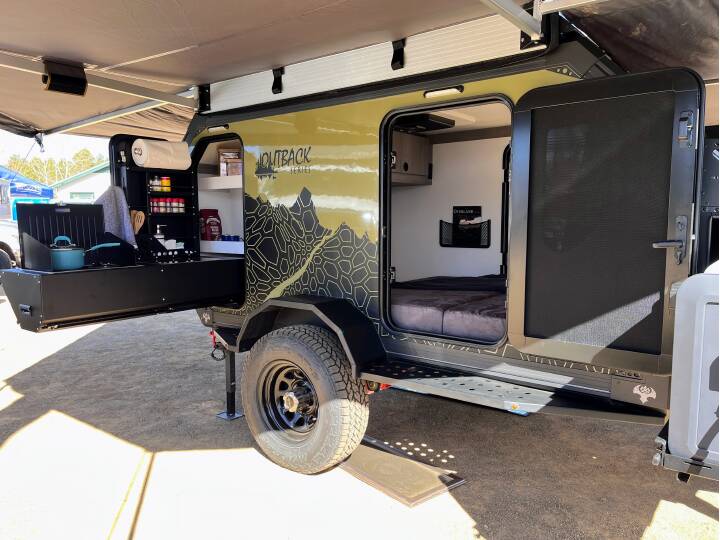

Full Slide-Out Kitchen w/ Pantry Cabinet
Optional Awnings (walls available to create enclosed 360° tent)
Interior Utility Closet for gear & power
Full-size bed, thermal windows, ample storage
Off-Road Capability:
Cruisemaster CRS Independent Suspension
Powder Coated Steel Frame
Cruisemaster DO35 Hitch & Stabilizing Jacks
Reinforced A-Frame Tongue
Integrated Recovery Points
Construction & Build Quality:
Insulated Dual-Pane Acrylic Windows
Fully Insulated Composite Walls & Floor Panels
CNC Machined Panels for precision fit
T-Slot Integrated Mounting Rails for gear and accessories
Rugged Steel Chassis with Low Center of Gravity
Core Specs:
Overall Length: 16 ft 9 in
Width (incl. fenders): 79.5 in
Height: 7 ft
Interior Height: 47.5 in
Ground Clearance: 16.5 in to skid plate, 21 in to frame
Tire Size: 245/75 R16
Dry Weight: 2,543 lbs
GVWR: 4,200 lbs
Tongue Weight: 280 lbs
Cargo Capacity: 1,657 lbs
Power & Electrical:
(2) 200W Solar Panels (400W total)
204Ah Lithium Battery Bank (102Ah x2)
800W Inverter
Victron Power System
12V Components for full off-grid functionality
Optional Additional Battery Storage
Heating & Cooling:
12V Air Conditioner – We ran it all day with the doors open – batteries stayed at 100%
Truma Combi Furnace/Water Heater (14,300 BTU Heat Output)
Rated for -40°F Performance
Insulated Composite Walls (Same as X195/X145)
Heated Tanks & Battery Heaters
Interior & Living:
Sleeps 2+
Dual-Zone 75L Refrigerator/Freezer (2.65 cu ft)
Full Slide-Out Kitchen w/ Pantry Cabinet
Optional Awnings (walls available to create enclosed 360° tent)
Interior Utility Closet for gear & power
Full-size bed, thermal windows, ample storage
Off-Road Capability:
Cruisemaster CRS Independent Suspension
Powder Coated Steel Frame
Cruisemaster DO35 Hitch & Stabilizing Jacks
Reinforced A-Frame Tongue
Integrated Recovery Points
Construction & Build Quality:
Insulated Dual-Pane Acrylic Windows
Fully Insulated Composite Walls & Floor Panels
CNC Machined Panels for precision fit
T-Slot Integrated Mounting Rails for gear and accessories
Rugged Steel Chassis with Low Center of Gravity
RV details
Type
Teardrop Trailer
Condition
New
Length
16 ft
GVWR
4,200 lbs
Odometer
0 mi
Sleeping capacity
2
Air conditioners
1
Water capacity
30 gal
Floor plan
OUTBACK SERIES
